Can a grounding electrode be installed outdoors?

Yes, a grounding electrode may be installed outdoors when its type and location suit the electrical system. The connection still requires a properly routed grounding electrode conductor.

Does a grounding electrode carry normal circuit current?

No, a grounding electrode does not normally carry circuit current. The electrode supports the grounding system during faults, surges, and other abnormal electrical conditions.

What connects a grounding electrode to the electrical system?

A grounding electrode conductor connects the electrode to service equipment or another designated grounding point. The conductor must remain continuous and protected where the installation requires protection.

Glossary

What Is a Grounding Electrode?

A grounding electrode is a conductive connection between an electrical system and the earth. Common examples include metal water piping, concrete-encased electrodes, and driven metal rods. The electrode provides a path that helps stabilize system voltage and carry certain electrical energy into the earth during faults or surges.

Quick Facts About Grounding Electrode

Key Takeaways About Grounding Electrode

A grounding electrode connects electrical equipment to the earth.
The electrode is part of the grounding electrode system.
A grounding electrode is not the same as a neutral conductor.

How Grounding Electrode Works

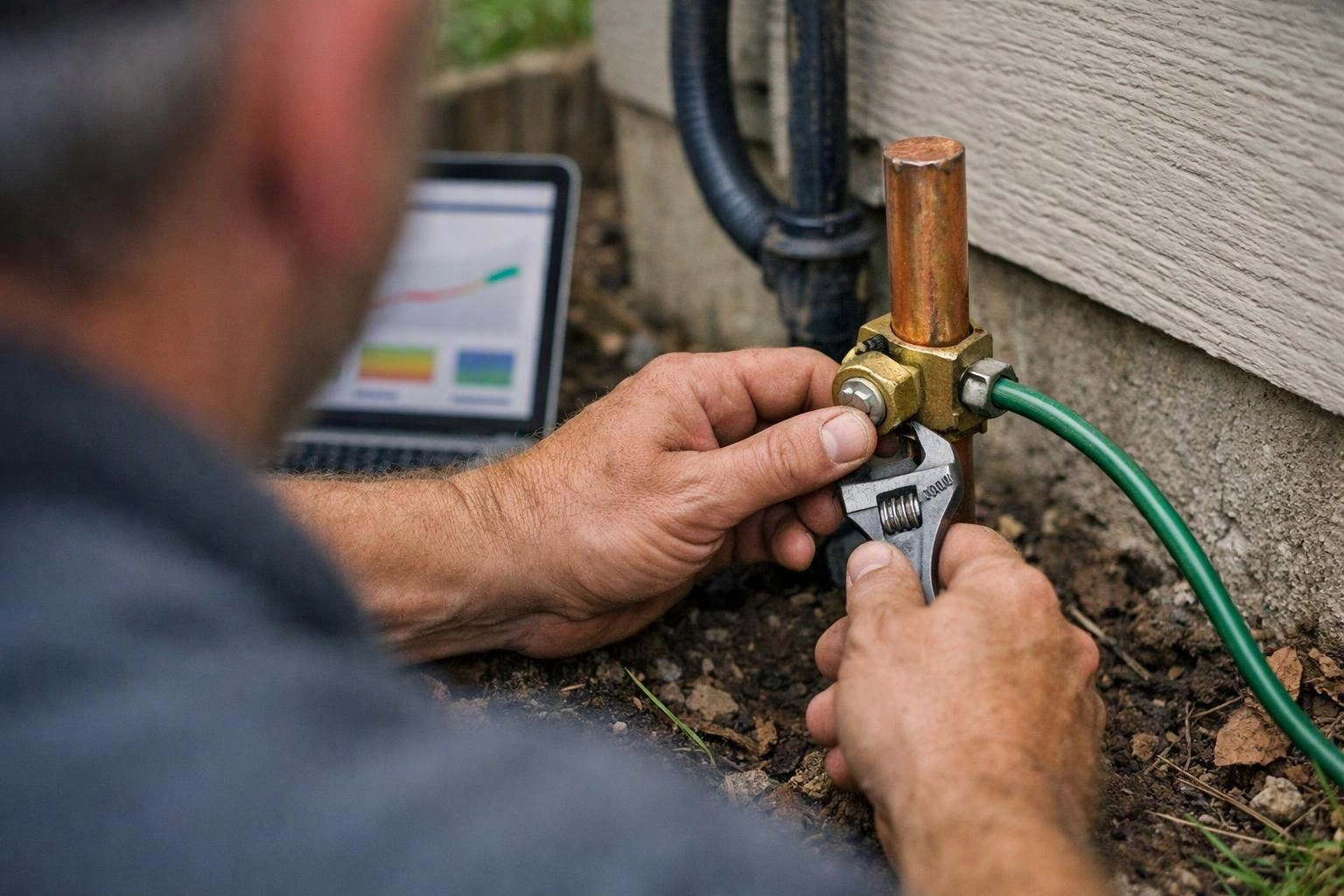

A worker tightens a brass pipe fitting with a wrench beside a house wall, with a laptop nearby

A grounding electrode forms the earth connection for an electrical grounding system. A grounding electrode conductor connects the service equipment to the electrode. The connection gives fault current, lightning energy, and other unwanted electrical energy a path associated with the earth.

Related glossary terms: Electrical Ground, Service Entrance, Ground Fault.

Electrode performance depends on the electrode type, its contact with surrounding soil, and the condition of its connections. A metal water pipe may serve as part of the grounding system when suitable bonding is present. Concrete-encased electrodes and driven rods are other common options. The electrode does not normally carry current during ordinary operation.

Grounding Electrode and Grounding Conductor

The grounding electrode connects the system to earth. An equipment grounding conductor connects metal equipment parts back to the source so a fault can operate protective equipment. These parts work together, but they serve different purposes in an electrical installation.

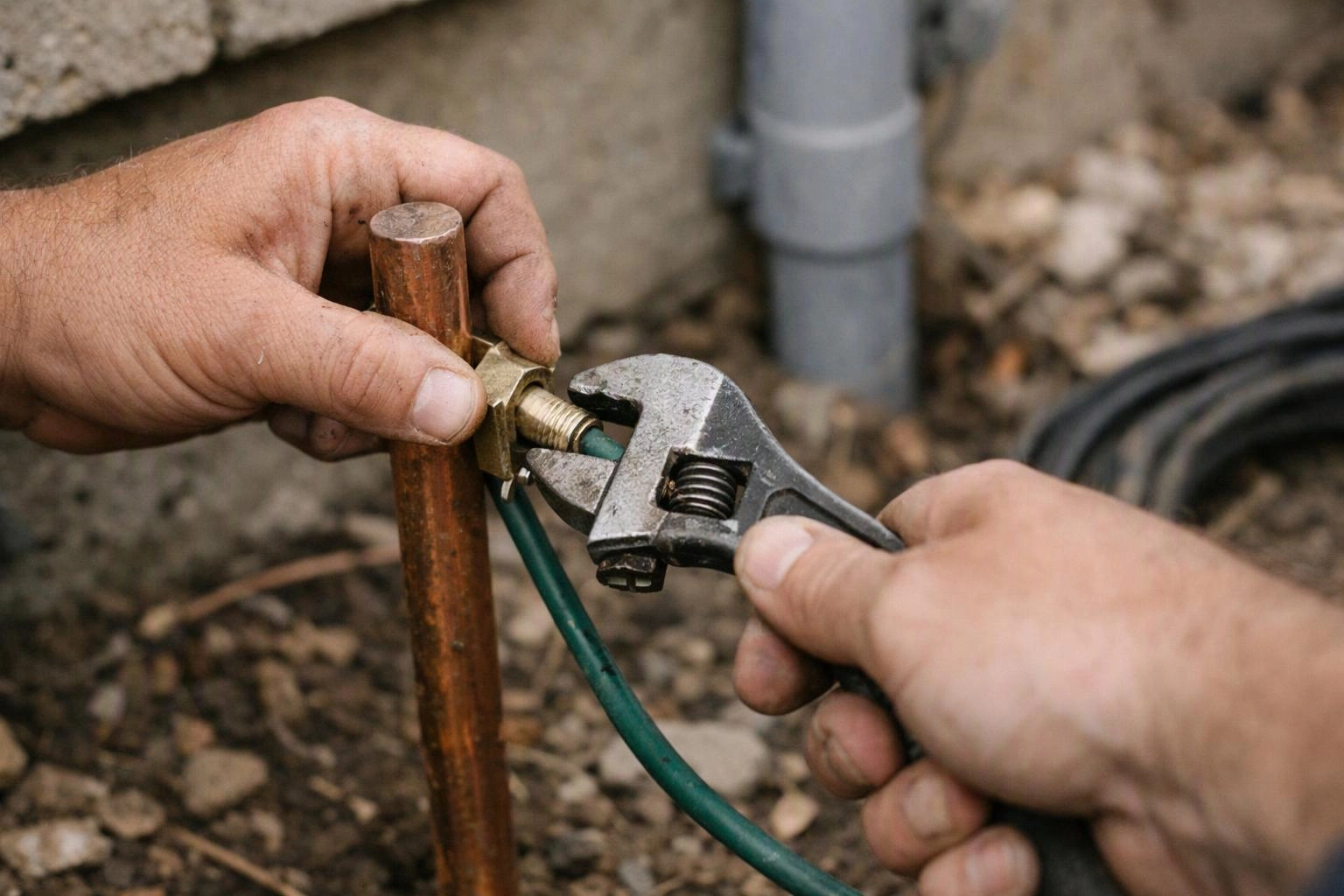

Hands use an adjustable wrench to tighten a fitting on a copper pipe outdoors

From the Chris Miller Electric team

When we inspect a grounding electrode, we trace its conductor from the service equipment and examine accessible connections for damage, looseness, or improper bonding. We also identify the electrode type and review how it fits into the building’s grounding system during electrical code correction work.

Grounding Electrode in Practice: A Real-World Example

During an electrical code correction, a service panel may have a grounding electrode conductor that is loose, damaged, or connected to an unsuitable point. The correction includes identifying the available electrode and restoring the connection so the grounding system functions as intended.
