What Is a Ground Fault?
A ground fault is an unintended connection between an energized conductor and ground, a grounded surface, or equipment grounding path. The fault redirects current away from its intended circuit route. This condition can cause a protective device to trip, especially when a GFCI detects an imbalance between current leaving and returning through a circuit.
Quick Facts About Ground Fault
Category
Electrical fault condition
Used for
Troubleshooting unwanted current paths
Common confusion
Often confused with a short circuit
Also called
Earth Fault
Often discussed with
Electrical Troubleshooting
Key Takeaways About Ground Fault
- Current leaves its intended circuit path.
- Moisture, damaged insulation, or faulty equipment can create one.
- A ground fault is not the same as an arc fault.
How Ground Fault Works
Ground fault current travels from an energized conductor toward ground through an unintended route. That route may involve damaged insulation, wet material, a metal enclosure, or a person contacting energized equipment. The current no longer follows only the intended circuit conductors.
Related glossary terms: GFCI, Electrical Ground, Short Circuit.
A GFCI compares current leaving a circuit with current returning through the circuit conductors. An imbalance indicates that some current is taking another path, so the device can open the circuit. A standard circuit breaker may also trip when the fault produces enough current to exceed the breaker's operating threshold. Troubleshooting focuses on separating connected loads, inspecting wiring, and testing equipment to locate the unwanted path.
From the Chris Miller Electric team

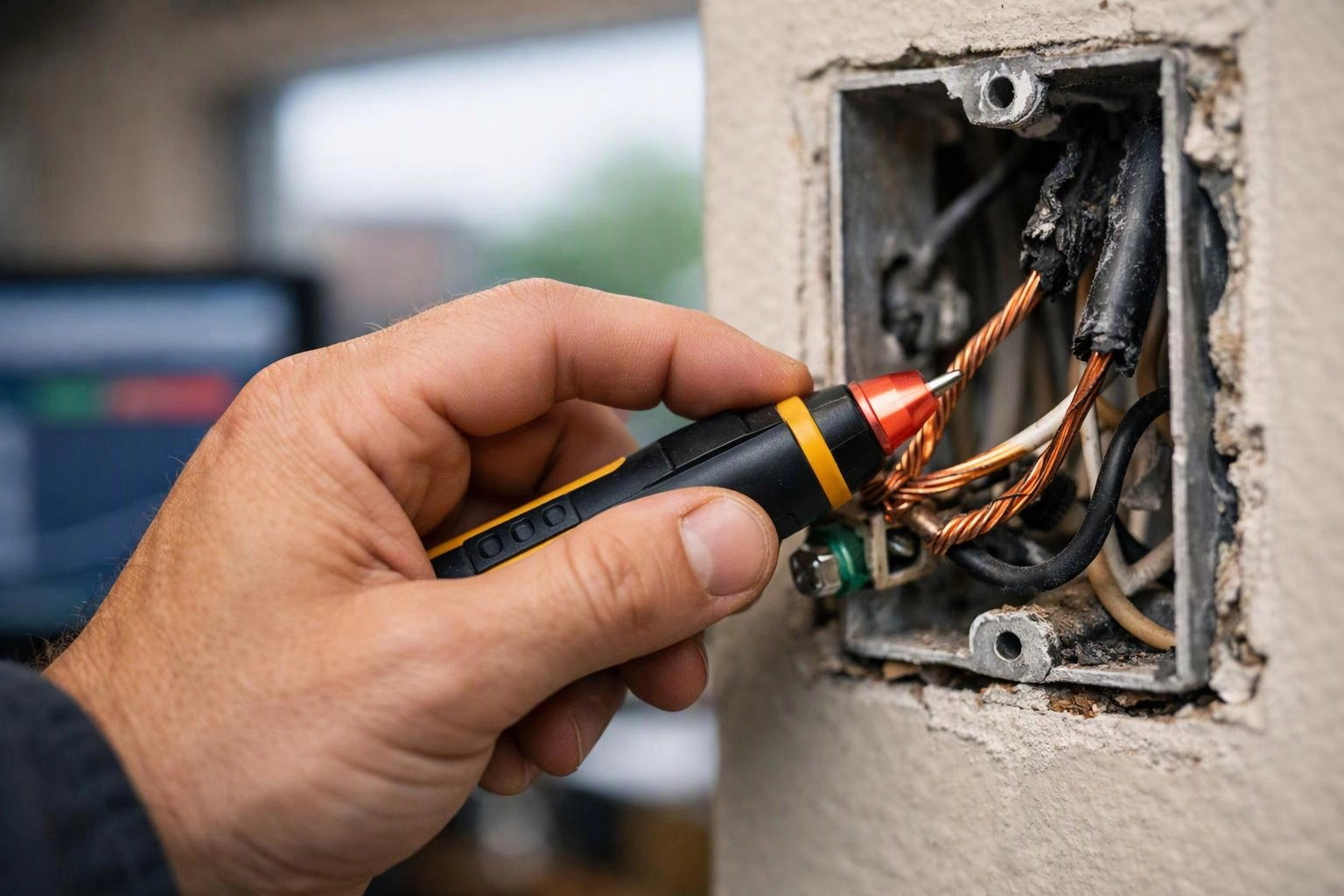

When we troubleshoot a suspected ground fault, we identify which circuit is affected and separate connected loads from the wiring. We inspect receptacles, junctions, equipment, and exposed conductors for damage or moisture. We then test the circuit and connected equipment to locate the fault before recommending a repair.
Ground Fault in Practice: A Real-World Example
A bathroom receptacle stops supplying power after a damp appliance develops an internal insulation problem. Electrical troubleshooting separates the appliance from the circuit, checks the receptacle and wiring, and tests the protective device to determine where current is leaving its intended path.
