What is AFCI?

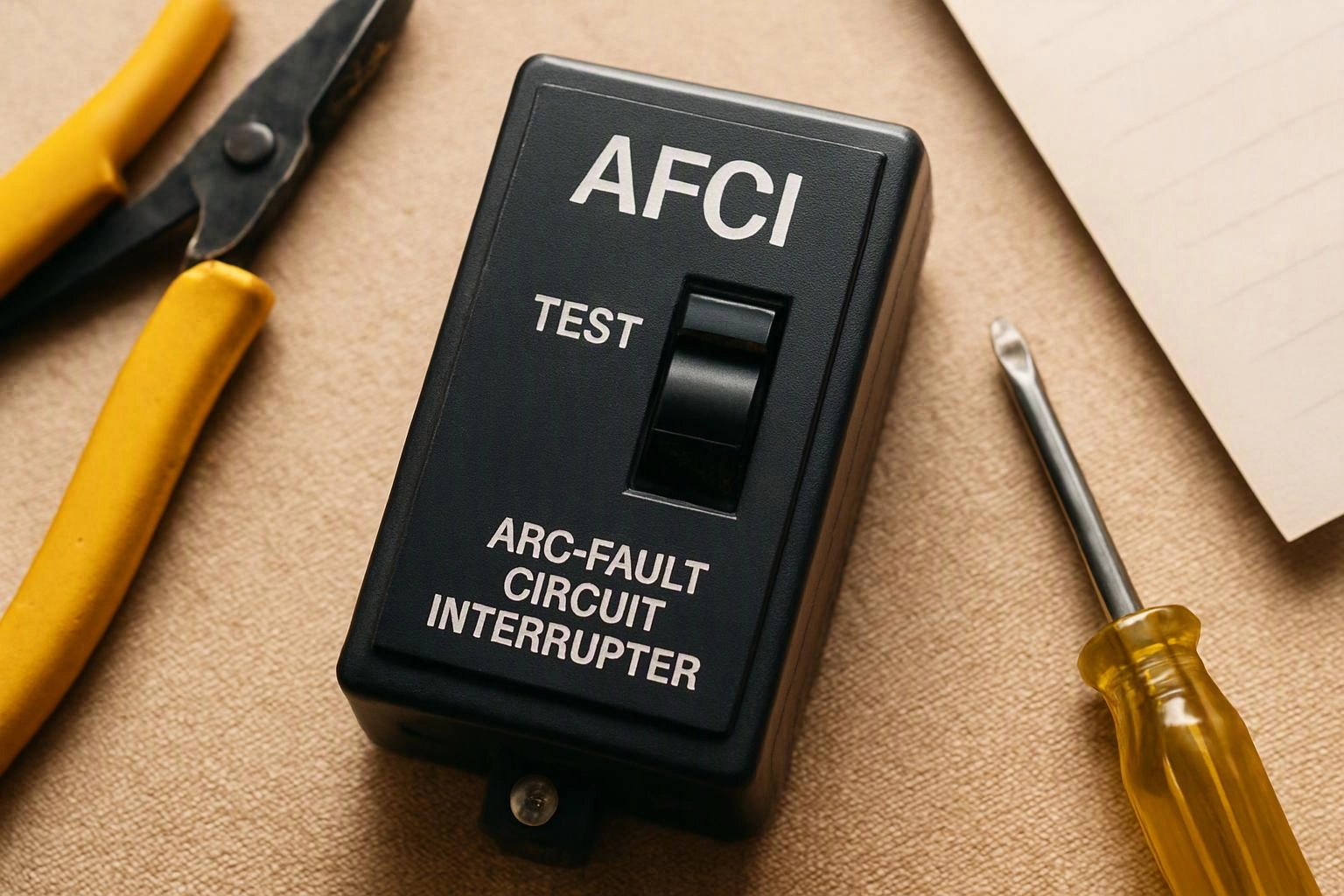

AFCI is an arc-fault circuit interrupter that detects electrical arcing and disconnects power before arcing can damage wiring. An AFCI monitors the electrical pattern on a circuit for irregular changes linked to damaged, loose, or pinched conductors. AFCI protection is commonly associated with branch circuits serving living areas in residential buildings.
Quick Facts About AFCI
Category
Circuit protection device
Used for
Detecting electrical arcing
Common confusion
AFCI is not the same as GFCI
Also called
Arc-Fault Circuit Interrupter, Arc-Fault Breaker
Often discussed with
Electrical Code Correction
Key Takeaways About AFCI
- AFCI responds to arcing patterns, not ordinary overloads.
- AFCI protection may be built into a breaker or receptacle.
- AFCI is different from GFCI protection for ground faults.
How AFCI Works
An AFCI reads the electrical waveform moving through a circuit. A loose terminal, damaged conductor, or pinched cable can create an arc with a pattern that differs from normal current flow. The device identifies that pattern and opens the circuit, which stops power from continuing through the suspected fault.
Related glossary terms: GFCI, Circuit Breaker, Short Circuit.

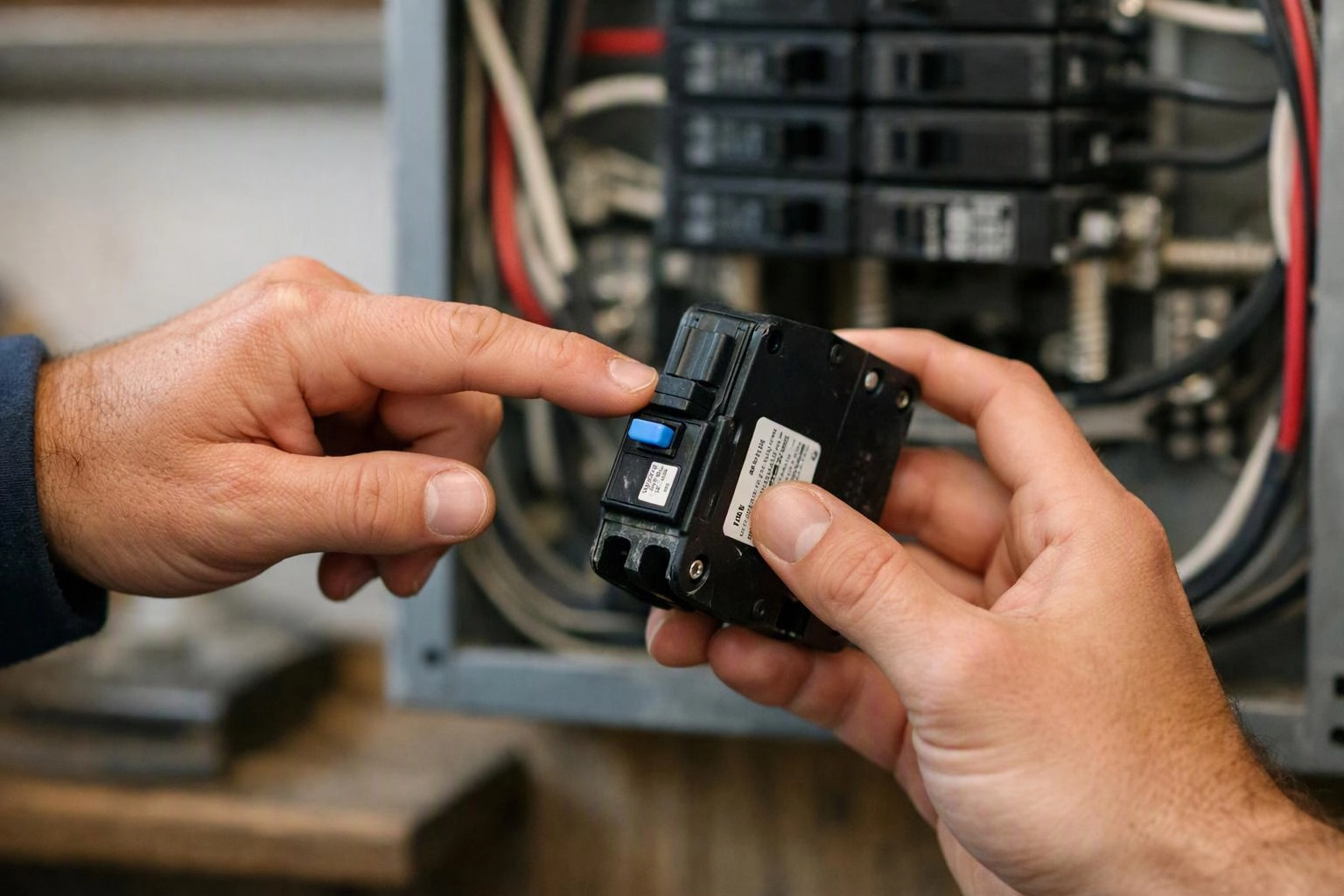

AFCI protection can be installed as an AFCI circuit breaker in the electrical panel or as an AFCI receptacle in a branch circuit. The device may include test and reset controls, while breaker-based protection can cover wiring farther along the circuit. GFCI protection serves a different purpose by sensing an imbalance between current leaving and returning through the circuit.
From the Chris Miller Electric team
When we handle Electrical Code Correction work, we identify the circuit, inspect the panel and connected wiring, and check whether the AFCI device operates as intended. We also look for wiring conditions that could cause repeated trips, because replacing a device alone may not resolve the underlying fault.
AFCI in Practice: A Real-World Example
A bedroom circuit has an AFCI breaker that trips after a cable is pinched during remodeling. The correction may involve inspecting the cable, repairing the damaged wiring, and testing the circuit after the fault is addressed.
